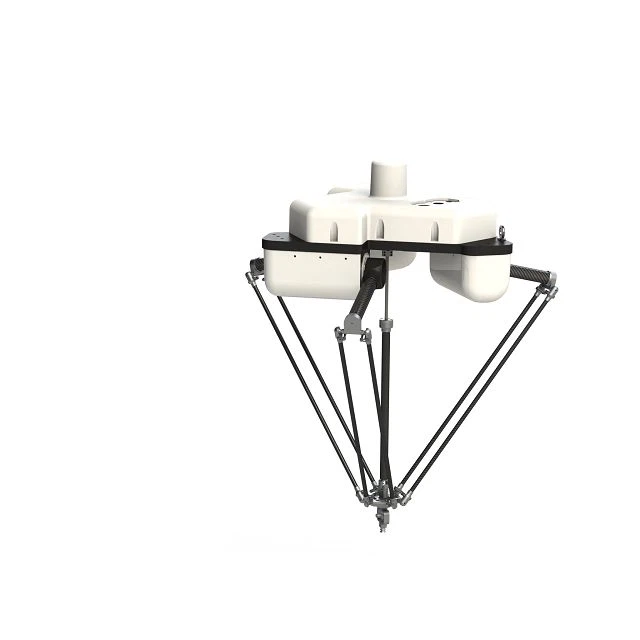

delta robot arm-1

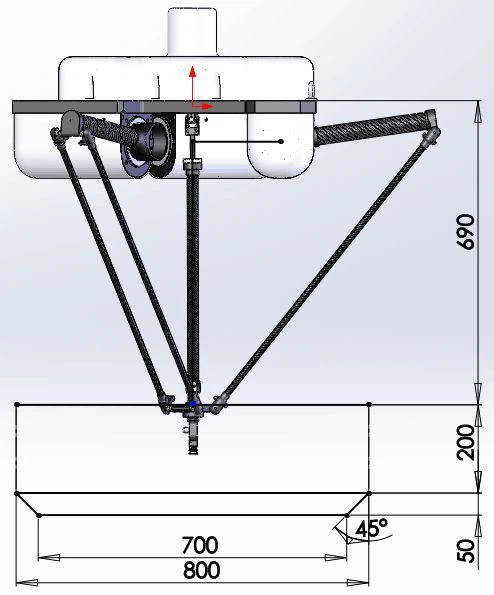

delta robot pick and place

RDT801B Delta Robot caj npab

Delta neeg hlau caj npab RDT801B yog haum rau ceev sorting los yog boxing nyob rau hauv ntau yam industries, kev txawj ntse pom kev pom, thiab zoo dynamic nrhiav. Lub 1KG load tuaj yeem ua tau raws li cov khoom lag luam feem ntau xav tau ceev sorting.

Xa kev nug

Tsham tam sim no

Hauj lwm lawm

Kev tsis

Delta neeg hlau caj npab RDT801BTaw qhia

RDT801B Delta Robot Arm

Delta Robot Arm Nta

1. Precise positioning: Repeat positioning precision is up to 0.1mm.

2. Visual Intelligent Recognition: Cov neeg hlau tuaj nrog lub zeem muag pom kev pom thiab txheeb xyuas qhov zoo, nta thiab lub cev ntawm lub hom phiaj.

3. Conveyor dynamic mus txog qhovtwg: Dynamically ntes lub hom phiaj ntawm kev pom kev pom, zoo heev txhim kho efficiency ntawm capture.

4. Kev kub ceev: Tsis muaj-load grabbing yeej tuaj yeem ncav cuag 140 zaug / feeb ( ncua 400mm) "

Technical Parameters ntawmDelta Neeg Hlau ArmRDT801B

Muaj neeg hlau		RDT801B
		plaub-axis
Cartesian tswj kev khiav hauj lwm ntau	R	400mm lub voj voog
	Z	200 hli
Kev sib koom ua haujlwm ntau yam	J1	+5 degree /+125 degree
	J2	+5 degree /+125 degree
	J3	+5 degree /+125 degree
	J4	± 360 degree
Kev sib tw khiav (25-400-25)		140
Rov ua dua		± 0.1 hli
Rated load		1kg ua
Lub cev muaj zog	1-3axis	750W
Lub cev muaj zog	4 axis	400W
Tag nrho lub zog		3000W
Qhov hluav taws xob		380V
Parameter ntawm I/O		Digital: 32 inputs, 32 outputs
IP qib		IP54
Ambient humidity		< 85%
ambient kub		1-45 degree
Qhov hnyav ntawm lub tshuab tag nrho		110kg ib
Txoj kev teeb tsa		hoisting
Tswj txee tiv thaiv qib		IP53
Tswj txee loj		560 (dav) × 330 (tuab) × 730 (siab)
Tswj txee qhov hnyav		45 KG
