RJH605E Robotic MIG Vuam Tshuab
- Qhov hnyav tshaj plaws: 5kg
- Lub vojvoog ua haujlwm siab tshaj plaws: 1441mm
- Rov ua qhov tseeb qhov tseeb: ±0.06mm
- Kev ua haujlwm siab thiab teb ceev ceev robotic MIG vuam tshuab
- Kuj muaj rau arc vuam, tig vuam, chaw vuam, laser vuam thiab lwm yam.
Hauj lwm lawm
Kev tsis
Cov yam ntxwv tseem ceeb ntawm HCNC Robotic MIG Vuam Tshuab
RJH605 yog tus kws tshaj lij MIG vuam neeg hlau uas tsim thiab tsim los ntawm HuazhongCNC. Zoo li TIG vuam, lub tshuab MIG vuam tshuab no tuaj yeem vuam yuav luag txhua cov hlau, tshwj xeeb tshaj yog tsim rau vuam aluminium thiab aluminium alloys, tooj liab thiab tooj liab alloys, thiab stainless hlau. Thaum lub sij hawm vuam, yuav luag tsis muaj oxidation hlawv, tsuas yog me me ntawm evaporation poob, thiab cov txheej txheem metallurgical kuj yooj yim.
1. System architecture
a. Txais tos thoob ntiaj teb tus qauv EtherCAT tsheb npav tshuab

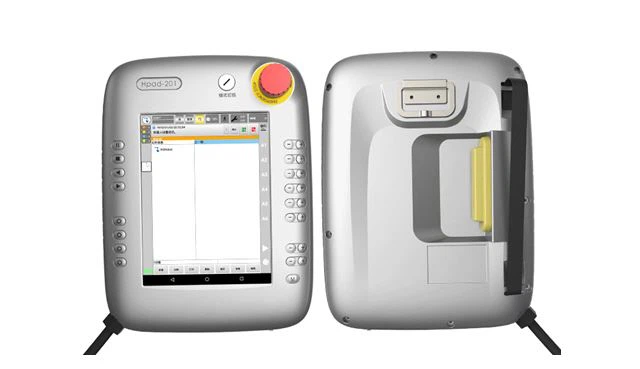

b. Nruab nrog lub cim tshiab ntawm HsPad qhia pendant, uas yooj yim rau cov neeg siv los qhia thiab ua haujlwm
c. Nws tuaj yeem txuas nrog kev lag luam Ethernet xws li Profinet los ntawm cov khoom siv lub rooj vag kom paub txog cov ntaub ntawv sib txuas lus ntawm thiab sab nraud PLC
2. High-speed thiab high-precision tswj
a. Paub txog torque feedforward tswj raws li dynamic qauv thiab meej parameter identification
b. Ntiaj teb no ntse trajectory optimization lub tswv yim kom ua tau zoo tshaj plaws tswj kev ua tau zoo
c. Ntau yam acceleration thiab deceleration zoo tswj thiab smoothing zog
3. Kev ruaj ntseg
a. Yooj yim luag kev qhia raws li tus qauv dynamic
b. Sensorless kev sib tsoo nrhiav kom tau technology
c. Vigilance hom thiab kev pab hom ua ke nrog sensors
d. Saj zawg zog thaj chaw ruaj ntseg thiab ib qho tseem ceeb rov qab mus rau keeb kwm
4. Yooj yim siv
a. Debugging cov cuab yeej: ua tiav parameter debugging thiab kuaj cov cuab yeej, davhlau ya nyob twg debugging raws li cov lus txib
b. Cov cuab yeej simulation: virtual tswj platform, 3D simulation platform
c. Muab cov neeg muas zaub nrog customized welding txheej txheem pob
d. Offline programming software, vuam txheej txheem pob, gluing txheej txheem pob, palletizing txheej txheem pob, stamping txheej txheem pob
5. Kev txawj ntse
Raws li cov ntaub ntawv loj thiab huab platforms, ntse ntsuas kev noj qab haus huv ntawm mig welding robots thiab muab kev saib xyuas thiab cov ntaub ntawv ceeb toom ntxov.
Technical Parameters ntawm Robotic MIG Vuam Tshuab
Qauv | HCNC-RJH605E MIG vuam neeg hlau | |
Degree ntawm kev ywj pheej | 6 | |
Load Max./Rated | 5kg ua | |
Lub voj voog ua haujlwm siab tshaj plaws | 1 441mm | |
Rov ua dua qhov tseeb | ± 0.06mm | |
Ntau yam ntawm kev txav | J1 | ± 150 degree |
J2 | -145 degree /+60 degree | |
J3 | +30 degree /+270 degree | |
J4 | ± 120 degree | |
J5 | -110 degree /+140 degree | |
J6 | ± 360 degree | |
Rated ceev | J1 | 2.58rad / s, 148 degree / s |
J2 | 2.58rad / s, 148 degree / s | |
J3 | 2.58rad / s, 148 degree / s | |
J4 | 3.93rad / s, 225 degree / s | |
J5 | 3.93rad / s, 225 degree / s | |
J6 | 3.93rad / s, 225 degree / s | |
Qhov ceev tshaj plaws | J1 | 3.87rad / s, 222 degree / s |
J2 | 3.87rad / s, 222 degree / s | |
J3 | 3.87rad / s, 222 degree / s | |
J4 | 5.89rad / s, 337.5 degree / s | |
J5 | 5.89rad / s, 337.5 degree / s | |
J6 | 5.89rad / s, 337.5 degree / s | |
Tso cai inertia lub sij hawm | J6 | 0.035kg.㎡ |
J5 | 0.3 kg㎡ | |
J4 | 0.3 kg㎡ | |
Tso cai torque | J6 | 15 Nm |
J5 | 35nm ua | |
J4 | 35nm ua | |
Kev thov ib puag ncig | Kub | 0-45 degree |
Cov av noo | 20%-80% | |
Lwm tus | Tsis txhob sib cuag nrog cov nplaim hluav taws, tawg lossis corrosive gas thiab kua, thiab nyob deb ntawm cov suab nrov hauv hluav taws xob (plasma) | |
Cable ntev ntawm kev qhia pendant | 8m | |
Lub cev-txheej txheem txuas kab ntev | 5m | |
Parameter ntawm I/O | Pines: input 32 pins, output 31 pins (cov tswj lub tswb tswb teeb nyob 1 tus pin) | |
Cov kab teeb liab tshwj tseg | / | |
Pneumatic tube | / | |
Roj teeb muaj peev xwm | 2.5 kVA ua | |
Rated zog | 2 KW | |
Rated voltage | Ib theem AC 220V 50HZ | |
Rated tam sim no | 10.8A | |
Kev tiv thaiv qib ntawm tus neeg hlau caj npab | IP50 | |
Hluav taws xob txee tiv thaiv qib | IP50 | |
Txoj kev teeb tsa | Nyob rau hauv lub ntiaj teb, upside down pendant, sab pendant | |
Hluav taws xob txee loj | 640mm (W) × 460mm (T) × 620mm (H) - ntsug | |
